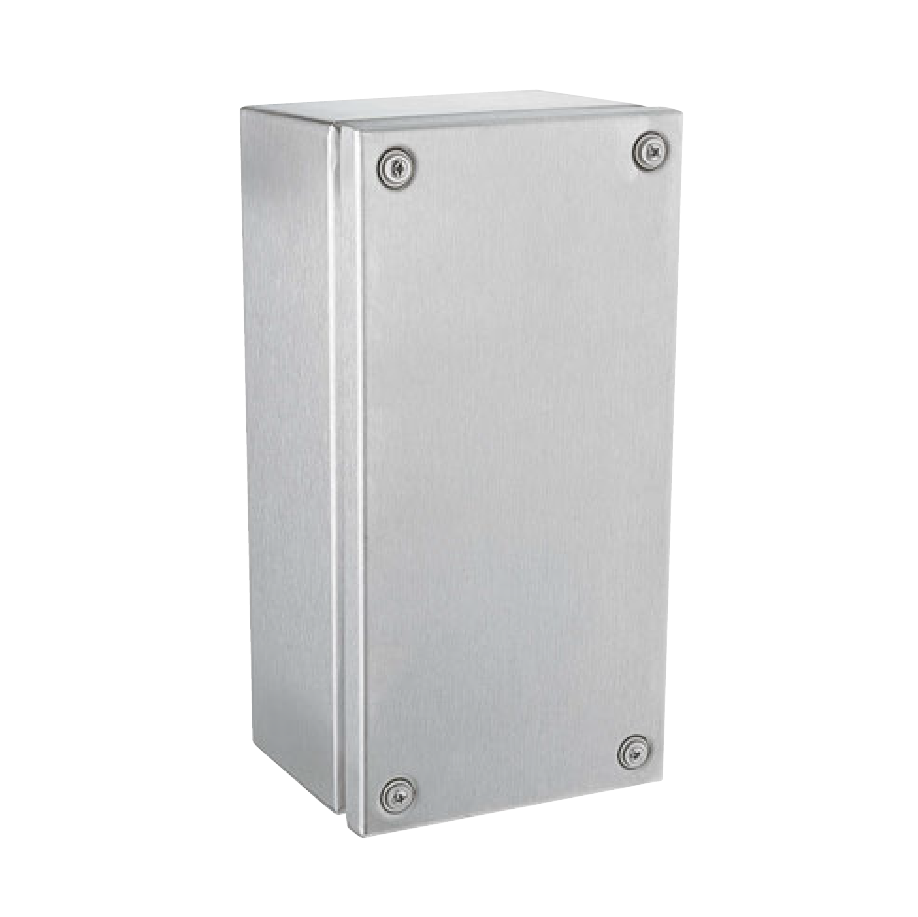

Enclosures made of Stainless Steel
These Enclosures are made of AISI 304 Stainless Steel used interminal boxes. We offer acid resistant AISI 316 Stainless Steel solutions upon demand. Standard equipment includes a perforated mounting angle to facilitate installation of the mounting plate or DIN rails. This makes it possible to drill access holes for cables anywhere along the sidewalls.
| Protection according to EN 60529 | IP 66 |
| Impact rating according to EN 62262 | IK 09 (- 25 °C to 35 °C) |
| Temperature range | – 30 °C to 80 °C |
| Bottom | Stainless Steel AISI 304 upon request AISI 316 |
| Cover | Stainless Steel AISI 304 upon request AISI 316 |
| Cover screws | Stainless Steel |
| Gasket for cover screws | Dryflex (SEBS) |
| Gasket | PUR (Polyurethane) |
| Bottom | AISI 304 |
| Cover | AISI 304 |
| Mounting plate | 2 mm thick galvanized steel |
| DIN Rail | DIN 35 |
