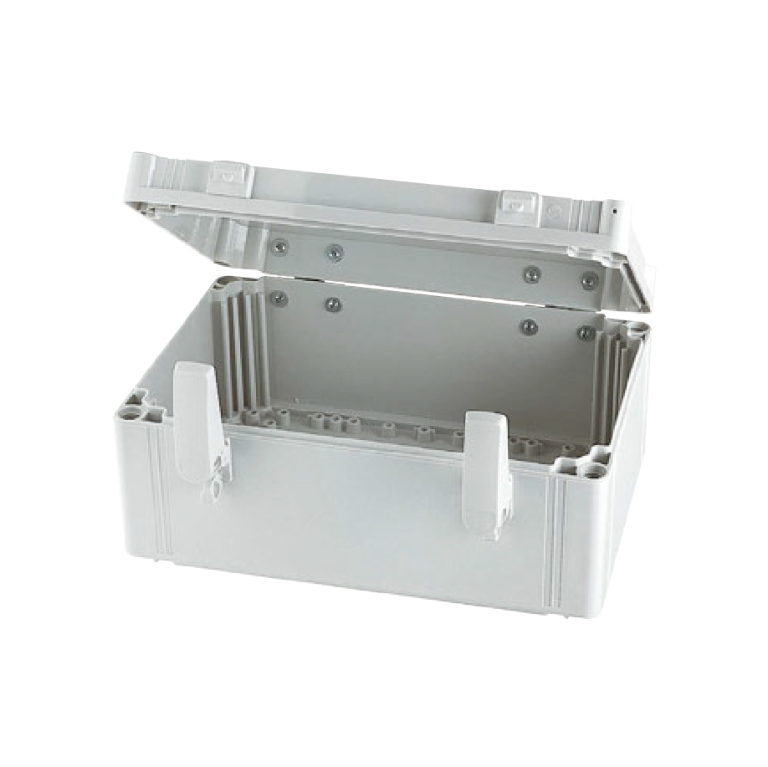

Wall mounted Enclosures made of PC
These Enclosures are equipped with pre-installed hinges and quick release latches. The accessories of series 13 fit these products.
Wall mounted Enclosures made of PC
These Enclosures are equipped with pre-installed hinges and quick release latches. The accessories of series 13 fit these products.
| Protection according to EN 60529 | IP 66, IP 67 |
| Impact rating according to EN 62262 | PC: IK 08 (- 25 °C to 35 °C) |
| Temperature range | PC: – 40 °C to 80 °C |
| Flammability | PC: UL746C 5V |
| Bottom | Fiber reinforced Polycarbonate |
| Cover | Polycarbonate |
| Cover screws | Fiber reinforced Polyamid |
| Gasket | PUR (Polyurethane) |
| Bottom | grey, RAL 7035 |
| Cover | grey, RAL 7035 or transparent |
| Mounting plate | 1,5 mm thick galvanisierter / galvanized steel |
| DIN Rail | DIN 35 |
| Additional accessories on page 29 |
