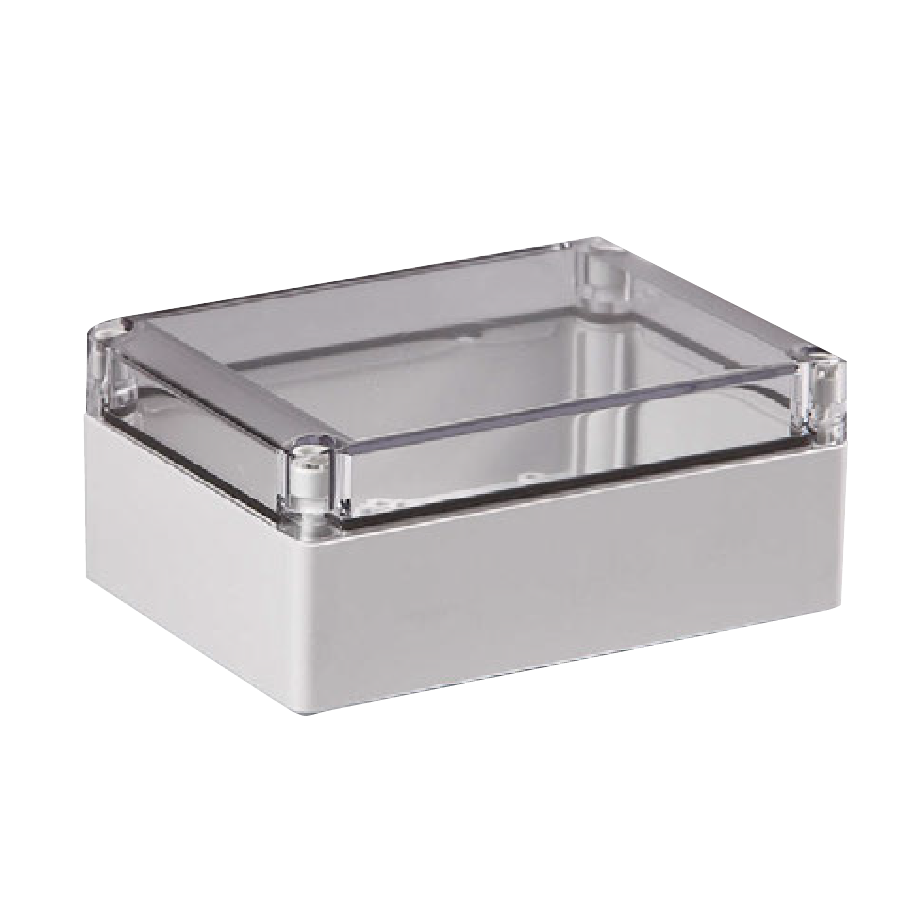

Mid size Enclosures made of PC or ABS
Manufactured from high performance Thermoplastic, Polycarbonate or ABS. These Enclosures are suitable for demanding OEM applications, e.g. for the protection of electronic and pneumatic components. This series includes small and medium sized universal Enclosures made of Polycarbonate with metric or PG knockouts. The Enclosures are available in increments of 25 mm (1”), e.g. 75 x 125 x 75 to 175 x 250 x 150 mm.
| Protection according to EN 60529 | IP 66, IP 67 |
| Impact rating according to EN 62262 | PC: IK 08 (- 25 °C to 35 °C) |
| Temperature range | PC: – 40 °C to 80 °C |
| Flammability | PC: UL746C 5V |
| Bottom | ABS or Fiber reinforced Polycabonate |
| Cover | ABS or Polycarbonate |
| Transp. cover | Polycarbonate |
| Cover screws | Fiber reinforced Polyamid |
| Gasket | PUR (Polyurethane) |
| Bottom | grey, RAL 7035 |
| Cover | grey, RAL 7035 or transparent |
| Mounting plate | 1,5 mm thick, galvanized steel |
| DIN Rail | DIN 35 |
| Additional accessories on page 26 |
